Stamping
01

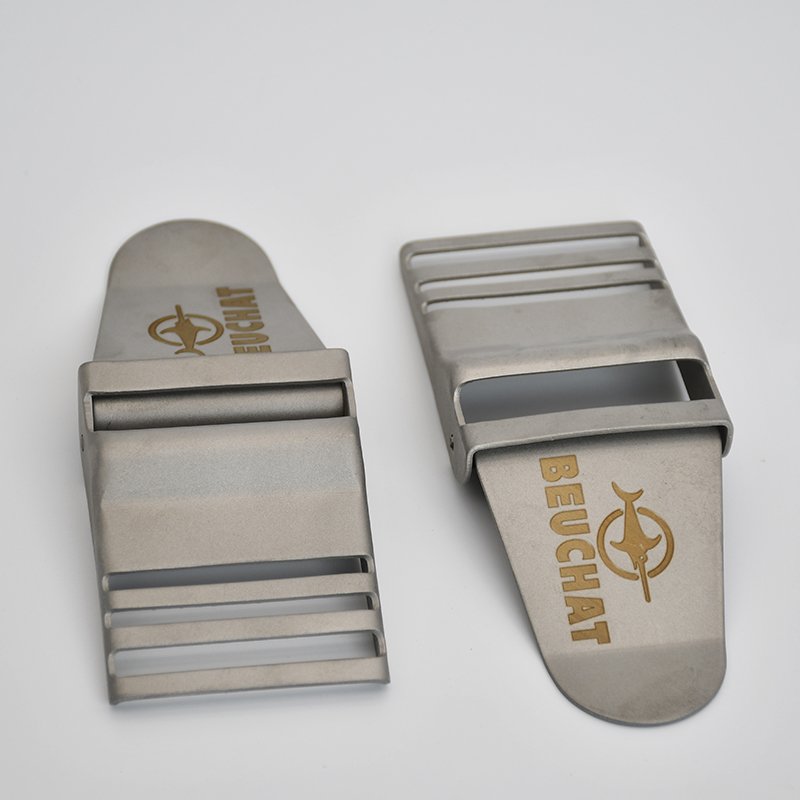

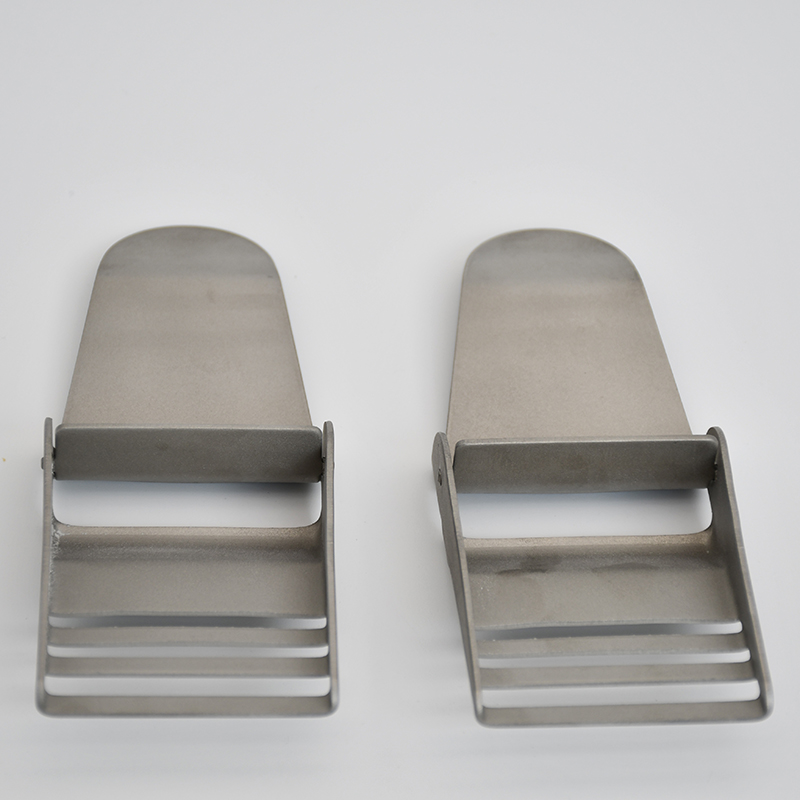

Stainless steel 304 stamping assembly sandblasting radium carving single punching die blanking die deep drawing die bending die
Product introduction

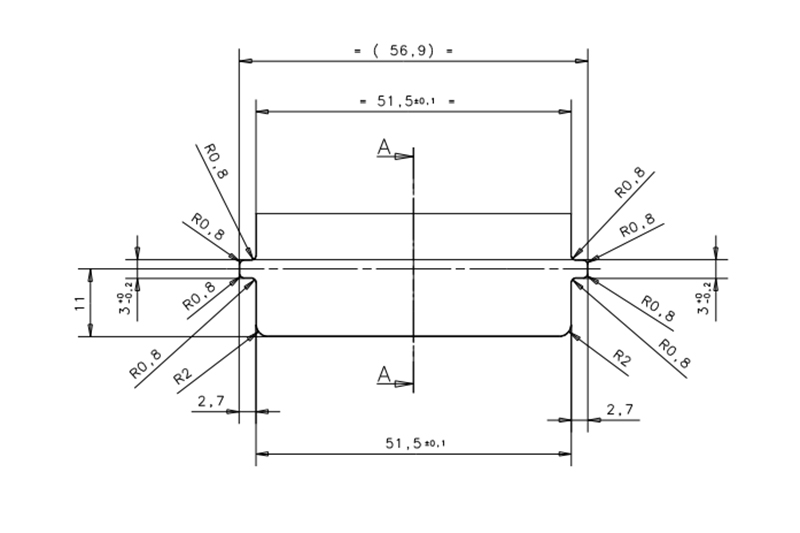

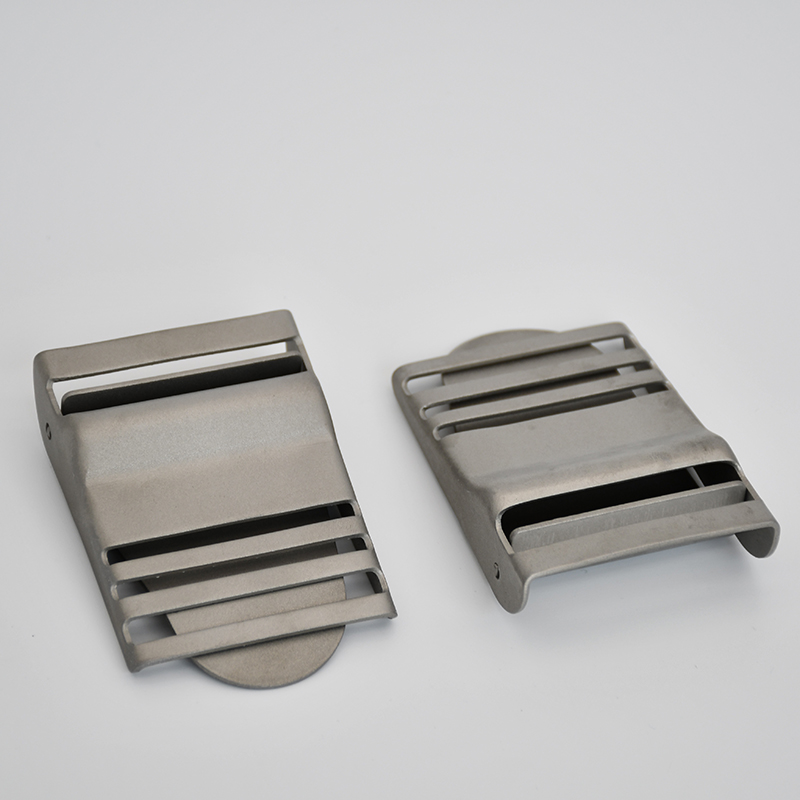

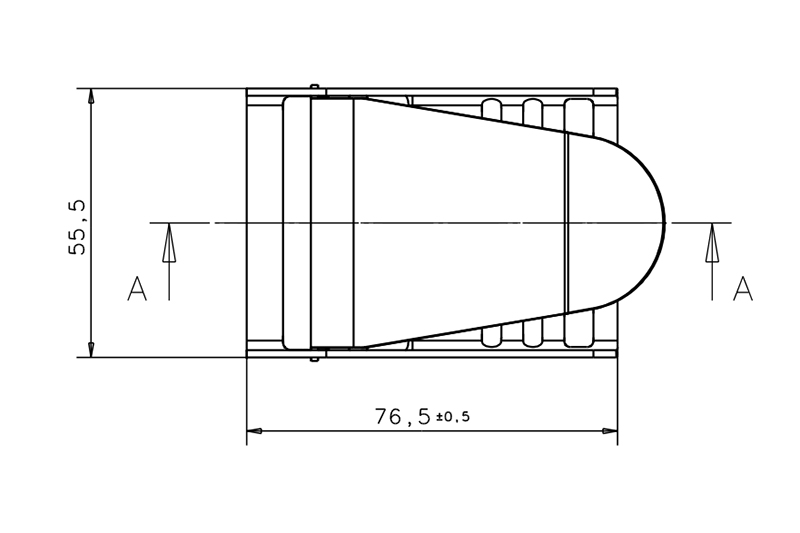

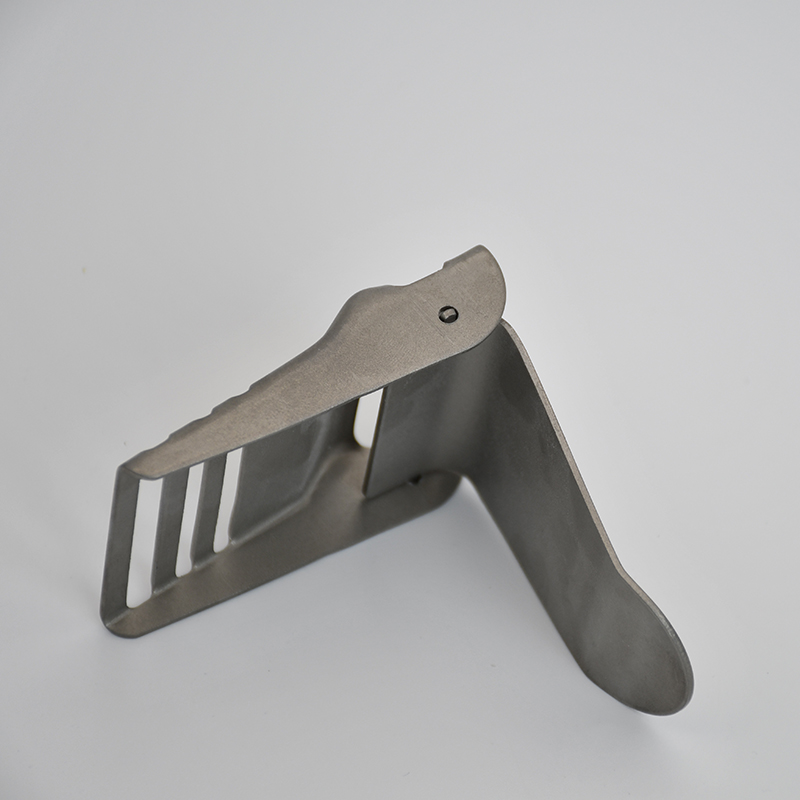

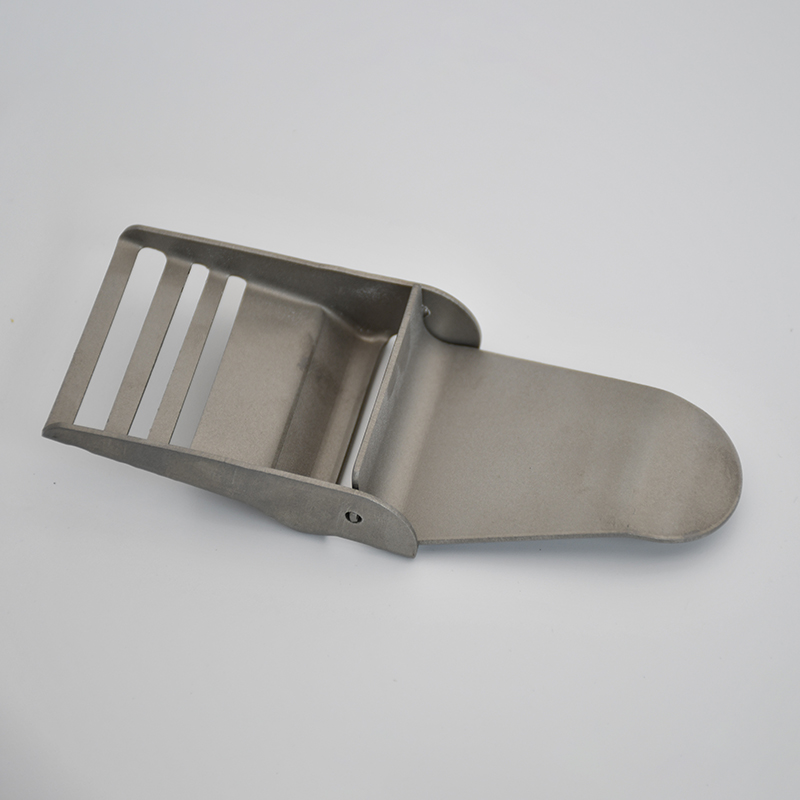

Product material, stainless steel 304 steel material thickness 1.5 mm Finished size length 77 width 55 height 21 mm. Expansion size length 90 width 80 This is fishing gear product hardware accessories, according to product characteristics, the production batch is not large, the number is not much. Save development cost, do three sets of single punching mold. A set of mold blanking, a set of mold punching, a set of mold drawing.
Production technology

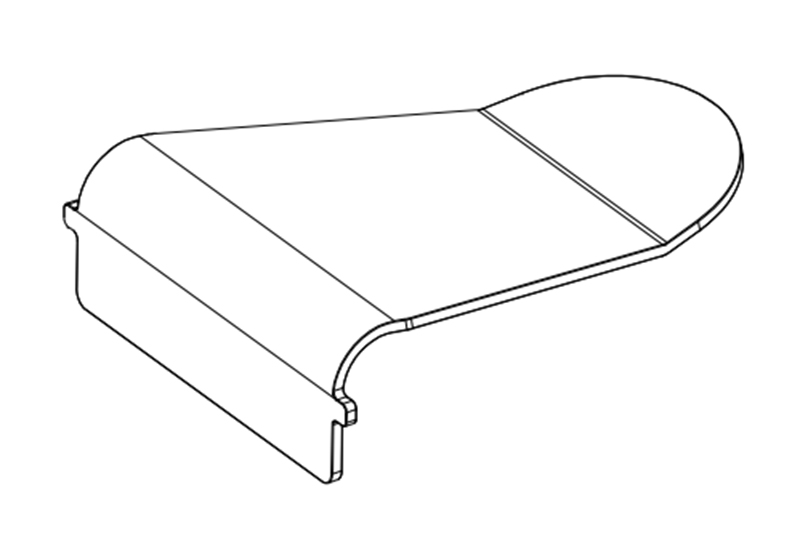

Product material, stainless steel 304 steel material thickness 1.5 mm Finished size 73 width 57 height 20 mm. Expansion size length 95 width 57 This is fishing gear product hardware accessories, according to product characteristics, the production batch is not large, the number is not much. Save development cost, do two sets of single punching mold. One set of mold cutting, one set of mold forming.
Production profile

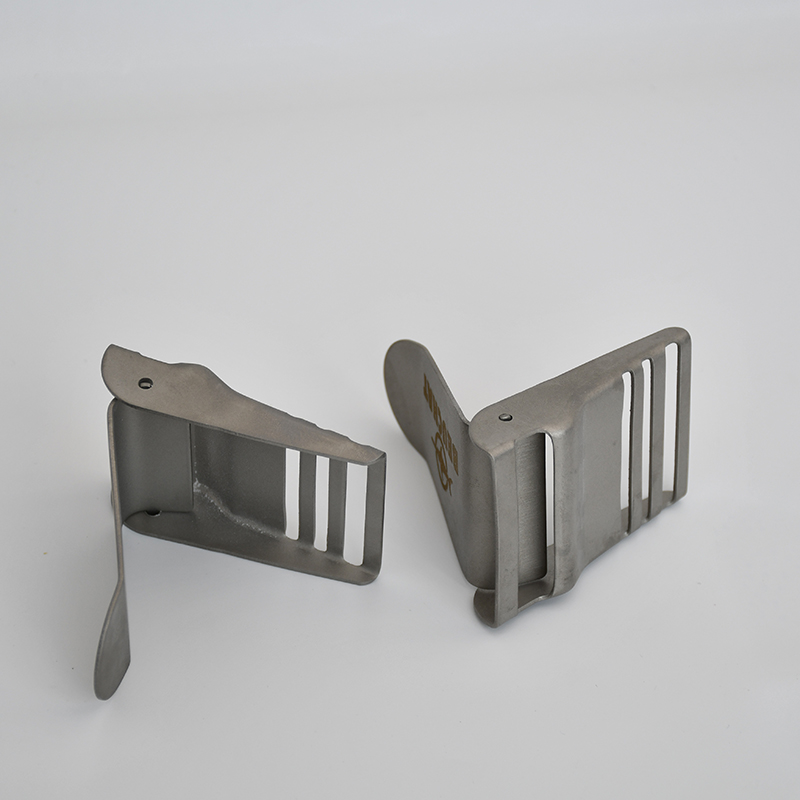

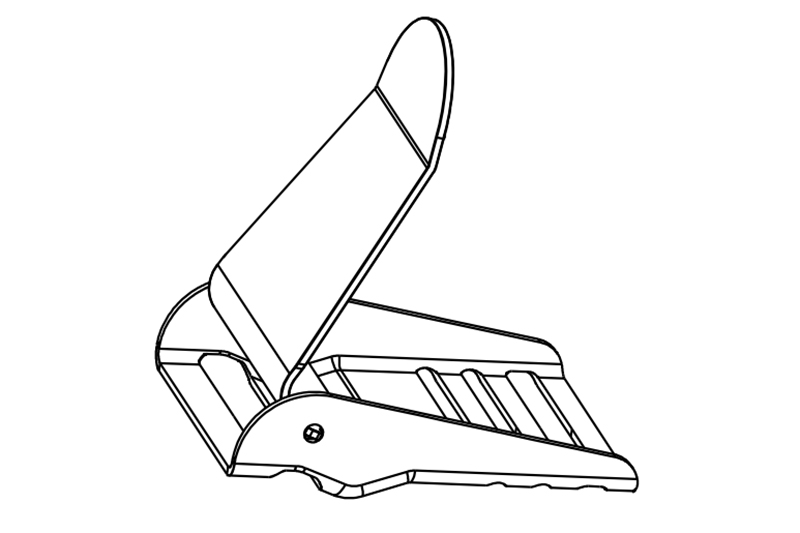

US Buckle lever and US Buckle body assembly is interference fit, the pin is installed into the 3.5 mm hole, the diameter direction has 0.5 mm gap, the length direction has 1 mm interference, the thickness of the product is 1.5 mm, can not be directly assembled by hand, customize a set of assembly fixture, the fixture is installed on the punch press, through the punch press assembly, the back of the assembly is deformed, and then the press shaping.
Product design
Surface treatment is usually required for hardware to prevent oxidation in the air for a long time. Due to the particularity of this product, surface treatment is required after assembly. There will be scratches on the surface of the product during assembly, and the scratches can be covered by surface treatment. After sandblasting, prepare the final process of radium carving.

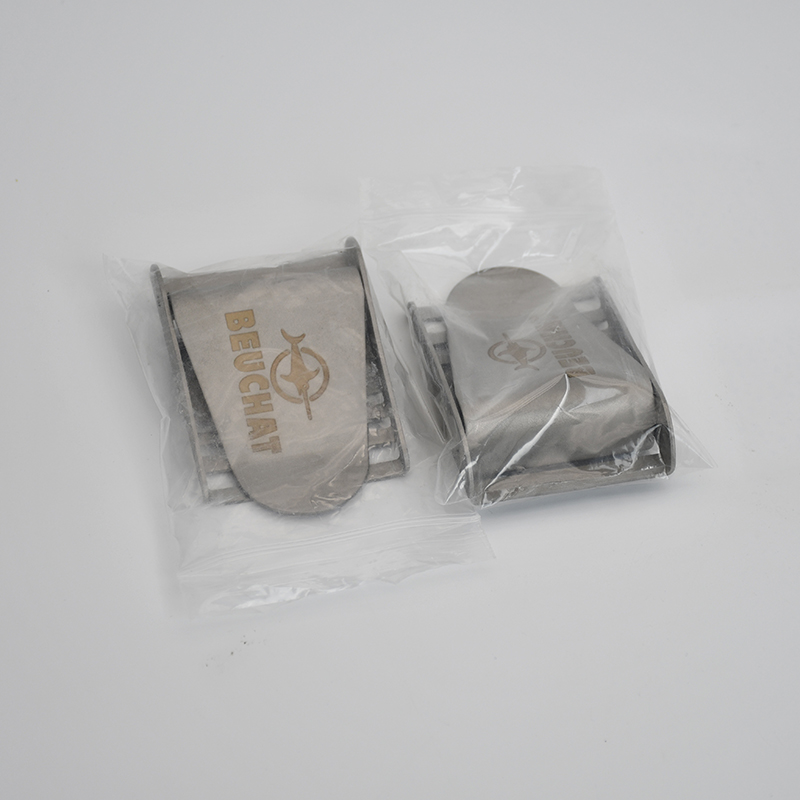

In order to ensure that our products are not scratched during transportation, each product needs to be packaged separately, each product is packed in a sealing bag, and the mouth of the bag is sealed to prevent oxidation in the air, one product is packed in a sealing bag, and then put into the carton together.

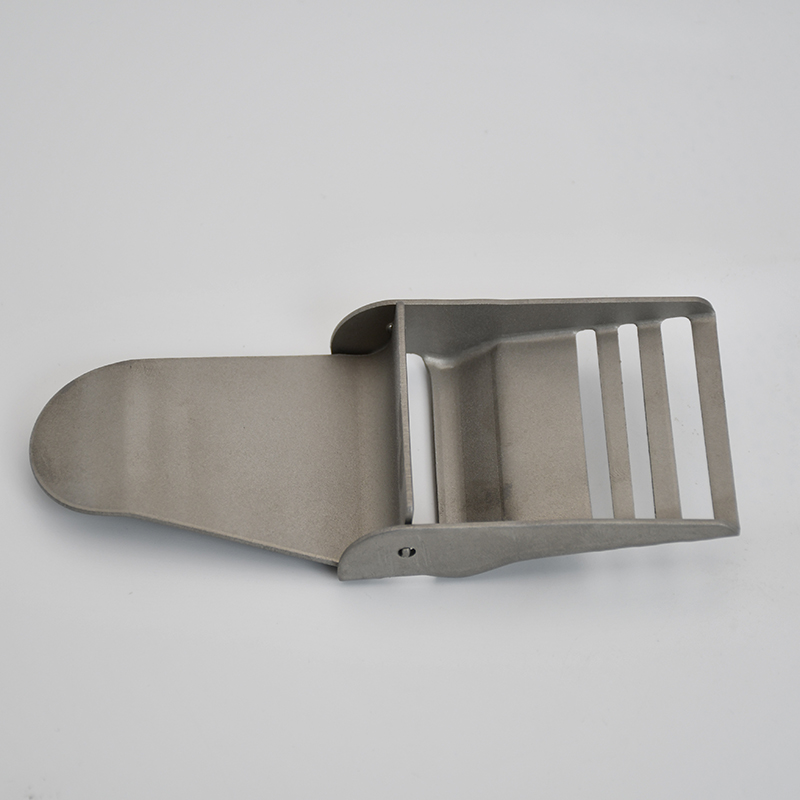

The whole product has nearly ten processes, US Buckle body product stamping three processes, US Buckle body product stamping two processes, here there are five processes, the sixth process assembly, the seventh process shaping, the eighth process sandblasting, the ninth process radium carving. Finally check the packaging and shipment.
Production process

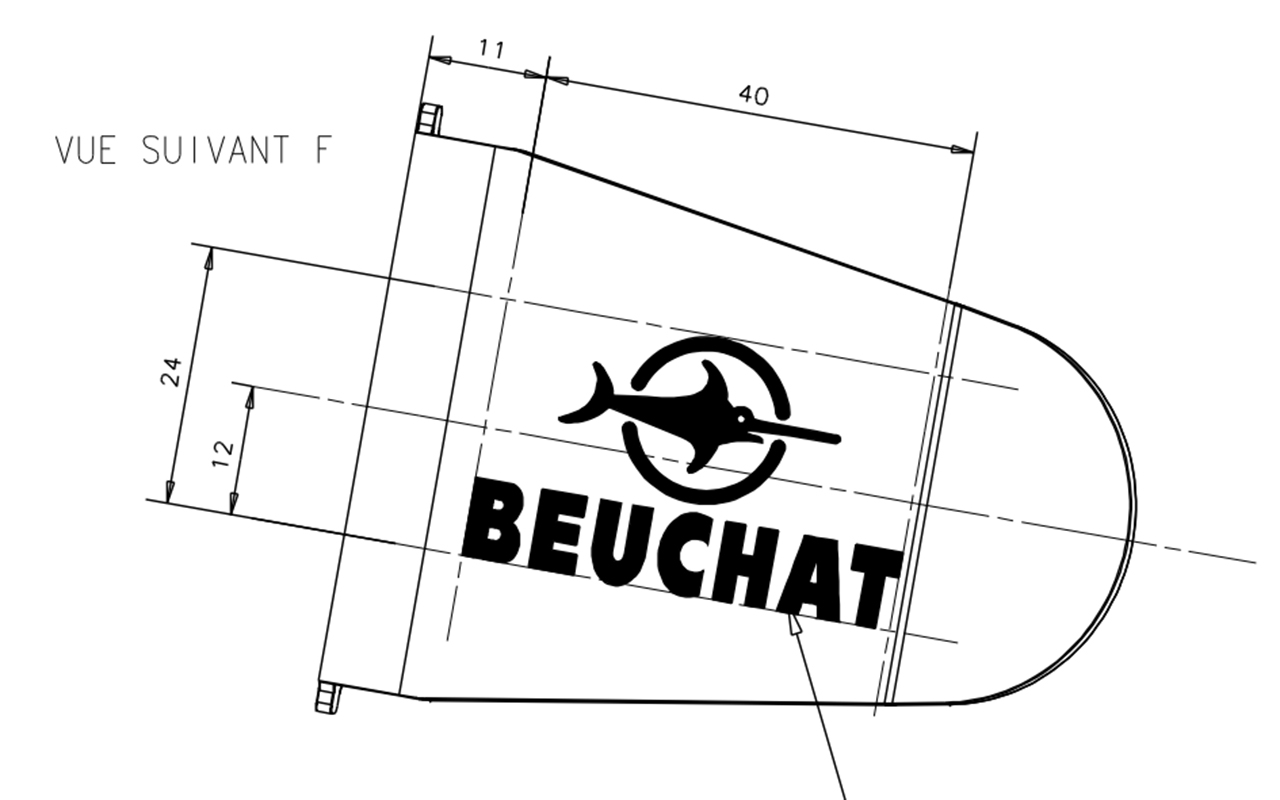

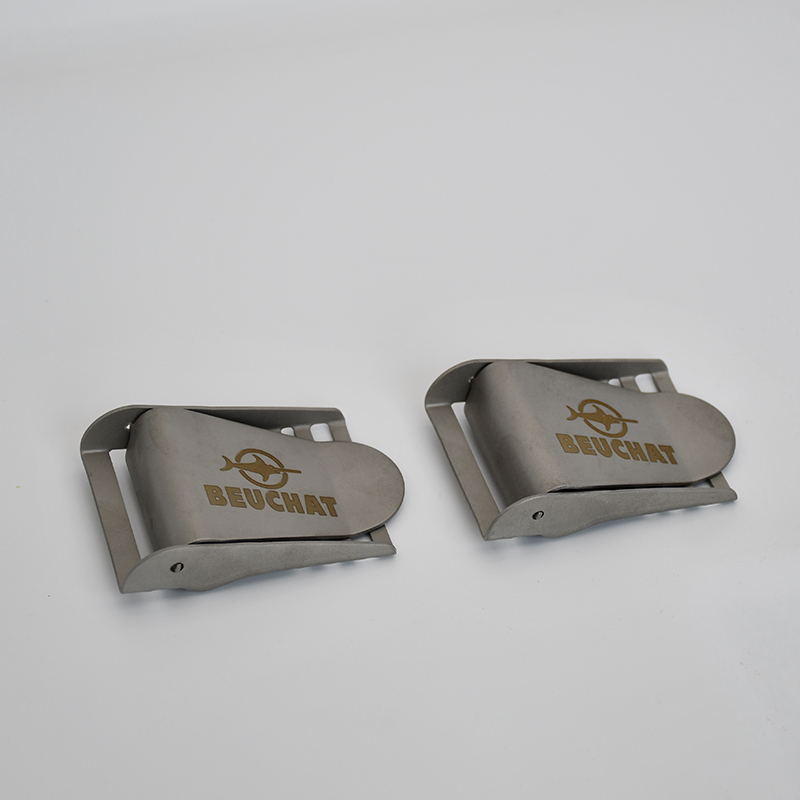

The last process is radium carving, after the sandblasting process, do a special fixture positioning product, first program the radium carving pattern, fix the product before production, adjust to the appropriate position, and then process.
